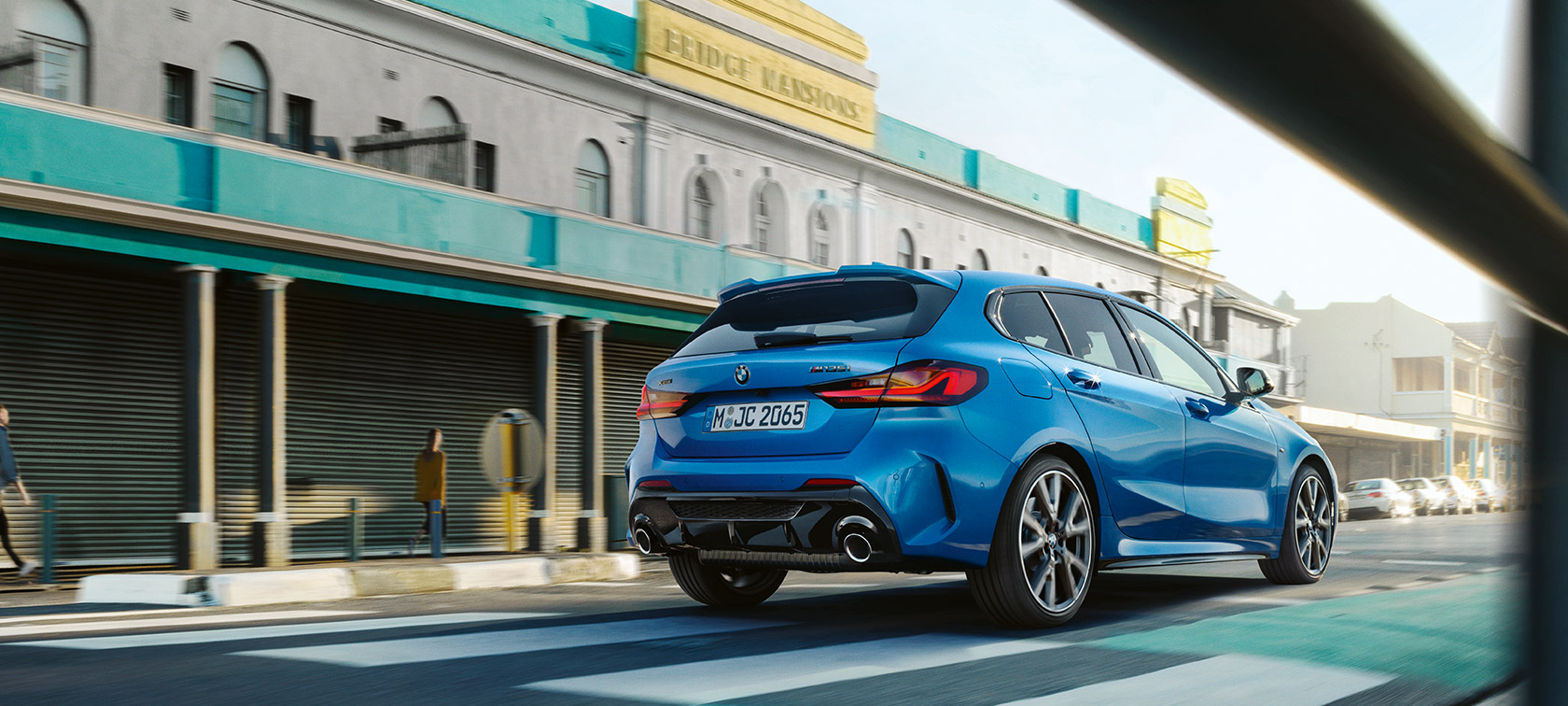

BMW 1 Series 128ti F40, three-quarter rear view driving

THE 1

BMW 1 SERIES: ENGINES & TECHNICAL DATA.

Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the BMW 1 Series.

Read more
THE 1BMW 1 SERIES: ENGINES & TECHNICAL DATA.
BMW 1 Series

BMW 1 SERIES: TECHNICAL DATA.

Select model

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 80 (109)
Torque in Nm 190
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 80 (109)/4300-6500
Nominal torque in Nm/1/min 190/1380-3800

Performance

Acceleration 0–100 km/h in s 10.6
Maximum speed in km/h 200

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 6.8-5.8
CO2 emissions, combined WLTP in g/km 154-132

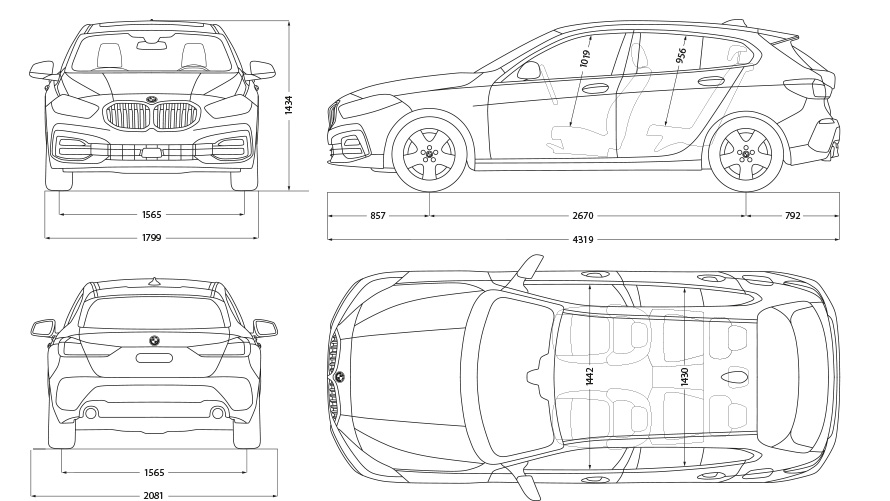

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1415
Luggage capacity in l 380-1200
Fuel capacity in l 42
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1100/75

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1499
Nominal power in kW (hp)/1/min 100 (136)/4500-6500
Nominal torque in Nm/1/min 220/1500-4100

Performance

Acceleration 0–100 km/h in s 8.8
Maximum speed in km/h 213

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 6.6-5.7
CO2 emissions, combined WLTP in g/km 150-129

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1395
Luggage capacity in l 380-1200
Fuel capacity in l 42
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 131 (178)
Torque in Nm 280
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1998
Nominal power in kW (hp)/1/min 131 (178)/4750-5500
Nominal torque in Nm/1/min 280/1350-4200

Performance

Acceleration 0–100 km/h in s 7.0
Maximum speed in km/h 235

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 6.8-6.0
CO2 emissions, combined WLTP in g/km 156-137

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1465
Luggage capacity in l 380-1200
Fuel capacity in l 50
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 195 (265)
Torque in Nm 400
Transmission 8-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1998
Nominal power in kW (hp)/1/min 195 (265)/4750-6500
Nominal torque in Nm/1/min 400/1750-4500

Performance

Acceleration 0–100 km/h in s 6.1
Maximum speed in km/h 250

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 7.4-6.8
CO2 emissions, combined WLTP in g/km 170-156

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1520
Luggage capacity in l 380-1200
Fuel capacity in l 50
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg -

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 225 (306)
Torque in Nm 450
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1998
Nominal power in kW (hp)/1/min 225 (306)/5000-6250
Nominal torque in Nm/1/min 450/1800-4500

Performance

Acceleration 0–100 km/h in s 4.8
Maximum speed in km/h 250

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 8.0-7.4
CO2 emissions, combined WLTP in g/km 180-167

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1600
Luggage capacity in l 380-1200
Fuel capacity in l 50
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg -

Total Powertrain [1]

Powertrain type Diesel
Power in kW (hp) 85 (116)
Torque in Nm 270
Transmission 7-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 3
Displacement in cm3 1496
Nominal power in kW (hp)/1/min 85 (116)/4000
Nominal torque in Nm/1/min 270/1750-2250

Performance

Acceleration 0–100 km/h in s 10.1
Maximum speed in km/h 200

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 5.4-4.6
CO2 emissions, combined WLTP in g/km 141-121

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1460
Luggage capacity in l 380-1200
Fuel capacity in l 42
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1]

Powertrain type Diesel
Power in kW (hp) 110 (150)
Torque in Nm 350
Transmission 6-speed, manual
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 110 (150)/4000
Nominal torque in Nm/1/min 350/1750-2500

Performance

Acceleration 0–100 km/h in s 8.5
Maximum speed in km/h 218

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 5.4-4.7
CO2 emissions, combined WLTP in g/km 141-122

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1480
Luggage capacity in l 380-1200
Fuel capacity in l 42
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1]

Powertrain type Diesel
Power in kW (hp) 110 (150)
Torque in Nm 350
Transmission 8-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 110 (150)/4000
Nominal torque in Nm/1/min 350/1750-2500

Performance

Acceleration 0–100 km/h in s 8.4
Maximum speed in km/h 216

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 5.6-4.9
CO2 emissions, combined WLTP in g/km 147-127

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1505
Luggage capacity in l 380-1200
Fuel capacity in l 42
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1]

Powertrain type Diesel
Power in kW (hp) 140 (190)
Torque in Nm 400
Transmission 8-speed, automatic
Drivetrain Front-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 140 (190)/4000
Nominal torque in Nm/1/min 400/1750-2500

Performance

Acceleration 0–100 km/h in s 7.3
Maximum speed in km/h 231

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 5.6-4.9
CO2 emissions, combined WLTP in g/km 146-129

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1525
Luggage capacity in l 380-1200
Fuel capacity in l 50
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1300/75

Total Powertrain [1]

Powertrain type Diesel
Power in kW (hp) 140 (190)
Torque in Nm 400
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm3 1995
Nominal power in kW (hp)/1/min 140 (190)/4000
Nominal torque in Nm/1/min 400/1750-2500

Performance

Acceleration 0–100 km/h in s 7.0
Maximum speed in km/h 230

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 5.8-5.1
CO2 emissions, combined WLTP in g/km 152-134

Dimensions/weights

Length/width/height in mm 4319/1799/1434
Wheelbase in mm 2670
Curb weight in kg [3] 1590
Luggage capacity in l 380-1200
Fuel capacity in l 50
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1500/75
​

Fuel consumption and CO2 emissions.

  • BMW M135i xDrive:
    Fuel consumption in l/100 km (combined): 7.5
    CO2 emissions in g/km (combined): 170

    BMW 128ti:
    Fuel consumption in l/100 km (combined): 6.8
    CO2 emissions in g/km (combined): 156

    The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

    [1]  Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

    [2]  Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195.

    For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

    Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/.

    [3]  The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.
