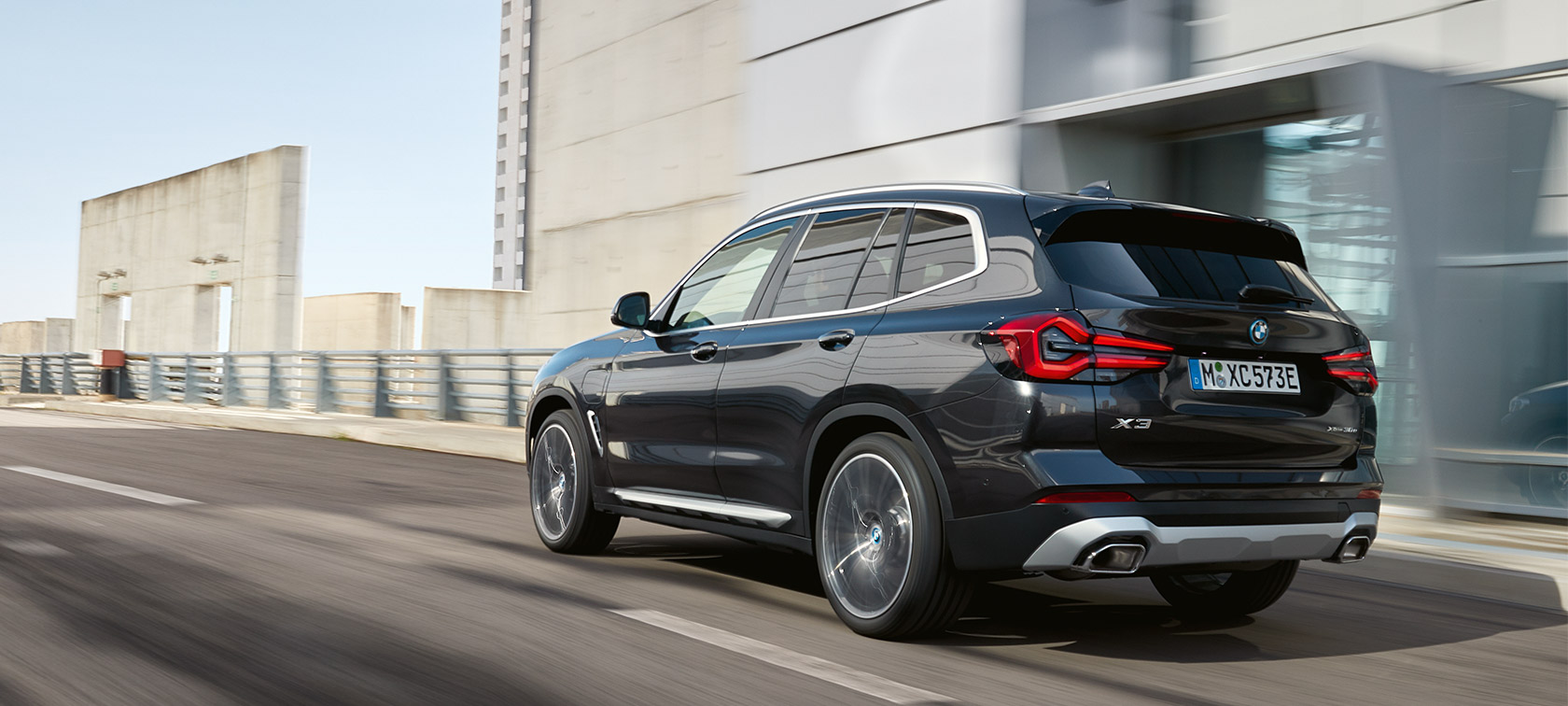

BMW X3 G01 three-quarter rear view driving 2021

THE X3

THE BMW X3: ENGINES
& TECHNICAL DATA.

THE X3THE BMW X3: ENGINES <br> & TECHNICAL DATA.

TECHNICAL DATA OF THE BMW X3.

Weight

Unladen weight EU in kg 1,785
Max. permissible weight in kg 2,400
Permitted load in kg 690
Permitted axle load front/rear in kg 1,070/1,410
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 215
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 8.2

Fuel consumption

Urban in l/100 km 8.3
Extra-urban in l/100 km 6.7
Combined in l/100 km 7.3
CO2 combined emissions in g/km 166
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 65-61

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,875
Max. permissible weight in kg 2,410
Permitted load in kg 610
Permitted axle load front/rear in kg 1,140/1,390
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 215
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 8.4-8.3

Fuel consumption

Urban in l/100 km 8.8
Extra-urban in l/100 km 7.0
Combined in l/100 km 7.7
CO2 combined emissions in g/km 175
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 65

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,885
Max. permissible weight in kg 2,450
Permitted load in kg 640
Permitted axle load front/rear in kg 1,160/1,400
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 180-185 (245-252)/5,000-6,500
Engine torque (Nm) at 1/min 350/1,450-4,800
Compression ratio : 1 10.2

Performance

Top speed in km/h 240-235
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 6.6-6.4

Fuel consumption

Urban in l/100 km 9.0
Extra-urban in l/100 km 7.2
Combined in l/100 km 7.9
CO2 combined emissions in g/km 180
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 65

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,985
Max. permissible weight in kg 2,485
Permitted load in kg 575
Permitted axle load front/rear in kg 1,200/1,390
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 6/4
Capacity in ccm 2,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 265-285 (360-387)/5,200-6,500
Engine torque (Nm) at 1/min 500/1,800-5,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 4.9-4.5

Fuel consumption

Urban in l/100 km 11.2
Extra-urban in l/100 km 7.6
Combined in l/100 km 8.9
CO2 combined emissions in g/km 204
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 65

Wheels

Tyre dimensions front 245/45 R20 103 W XL
Tyre dimensions rear 275/40 R20 106 W XL
Wheel dimensions and material front 8 J x 20 inches, light-alloy
Wheel dimensions and material rear 9.5 J x 20 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,780
Max. permissible weight in kg 2,400
Permitted load in kg 695
Permitted axle load front/rear in kg 1,130/1,400
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 110 (150)/4,000
Engine torque (Nm) at 1/min 350/1,500-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 198
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 9.7

Fuel consumption

Urban in l/100 km 6.0
Extra-urban in l/100 km 4.7
Combined in l/100 km 5.2
CO2 combined emissions in g/km 136
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,915
Max. permissible weight in kg 2,500
Permitted load in kg 660
Permitted axle load front/rear in kg 1,200/1,430
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 120-140 (163-190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 213-205
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 9.0-7.9

Fuel consumption

Urban in l/100 km 6.3
Extra-urban in l/100 km 5.7
Combined in l/100 km 5.9
CO2 combined emissions in g/km 156
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,945
Max. permissible weight in kg 2,500
Permitted load in kg 630
Permitted axle load front/rear in kg 1,190/1,415
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 183-195 (249-265)/4,000
Engine torque (Nm) at 1/min 620/2,000-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 235-240
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 6.0-5.8

Fuel consumption

Urban in l/100 km 7.4-7.3
Extra-urban in l/100 km 6.1-5.9
Combined in l/100 km 6.6-6.4
CO2 combined emissions in g/km 173-169
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 2,015
Max. permissible weight in kg 2.550
Permitted load in kg 610
Permitted axle load front/rear in kg 1.220/1,450
Luggage capacity min. (seats up or roof down) in l 550
Luggage capacity max. (seats down or roof up) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400(1)-2,000
Trailer load 12% (braked) in kg 2,400(1)-2,000

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 240 (326)/4,400
Engine torque (Nm) at 1/min 680/1,750-2,750
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 4.9

Fuel consumption

Urban in l/100 km 7.5-7.4
Extra-urban in l/100 km 6.3-6.2
Combined in l/100 km 6.7-6.6
CO2 combined emissions in g/km 177-174
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 245/45 R20 103 W XL
Tyre dimensions rear 275/40 R20 106 W XL
Wheel dimensions and material front 8 J x 20 inches, light-alloy
Wheel dimensions and material rear 9.5 J x 20 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 2,065
Max. permissible weight in kg 2,600
Permitted load in kg 610
Permitted axle load front/rear in kg 1,200/1,515
Luggage capacity min. (seats up or roof down) in l 450
Luggage capacity max. (seats down or roof up) in l 1,500
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/3,800-6,500
Engine torque (Nm) at 1/min 350/1,450-3,600
Compression ratio : 1 10.2

Performance

Top speed in km/h 210
Top speed electrical in km/h 135
Acceleration 0–100 km/h in s 6.1

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km 3.2
CO2 combined emissions in g/km 73
Electricity consumption, combined in kWh/100km 19.3
Tank capacity, approx. in l 50

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km up to 41
Growth capacity of lithium–ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 2.6
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 3.7

Electric engine

Electric engine power kW (hp) at 1/min 80 (109)/3,140
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (hp) 215(292)
Combined torque Nm 420
Including of /content/bmw/marketB4R1/master/en_BQ/publicPools/teaser-pool/medium-teasers/tyre-energy-lables/jcr:content/par-4col/wideteaser_67 failed

Fuel consumption and CO2 emissions of the BMW X3.

BMW X3 xDrive30e:
Fuel consumption in l/100 km (combined): 2.6-2.0
CO2 emissions in g/km (combined): 59–44

BMW X3 xDrive30i:
Fuel consumption in l/100 km (combined): 8.5-7.6
CO2 emissions in g/km (combined): 194–173

BMW X3 M40i:
Fuel consumption in l/100 km (combined): 9.5-8.7
CO2 emissions in g/km (combined): 217–199


Official data on fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP specifications take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Read more

Fuel consumption and CO2 emissions of the BMW X3.

  • BMW X3 xDrive30i:
    Fuel consumption in l/100 km (combined): 7.9
    CO2 emissions in g/km (combined): 180

    BMW X3 M40i:
    Fuel consumption in l/100 km (combined): 8.9
    CO2 emissions in g/km (combined): 204

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.



    The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

    [1] Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

    [2] For plug-in hybrid: Electric drive depending on battery charging level.

    [3] For plug-in hybrid: At temperatures below freezing, the fully electric drive system is only available after a few kilometres of driving, once the battery has heated to operational temperature.

    [4] Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195.

    For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

    Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/.

    [5] For plug-in hybrid: Weighted, combined (EC AC Charge Weighted)

    [6] Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

    [7] The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

    [8] The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

    [9] Composed of combustion engine drive (specified nominal value) and electric drive (up to specified nominal value). Electric drive depending on battery charging level.

    [10] Provisional figures; any missing figures were unavailable at the time of publication.
