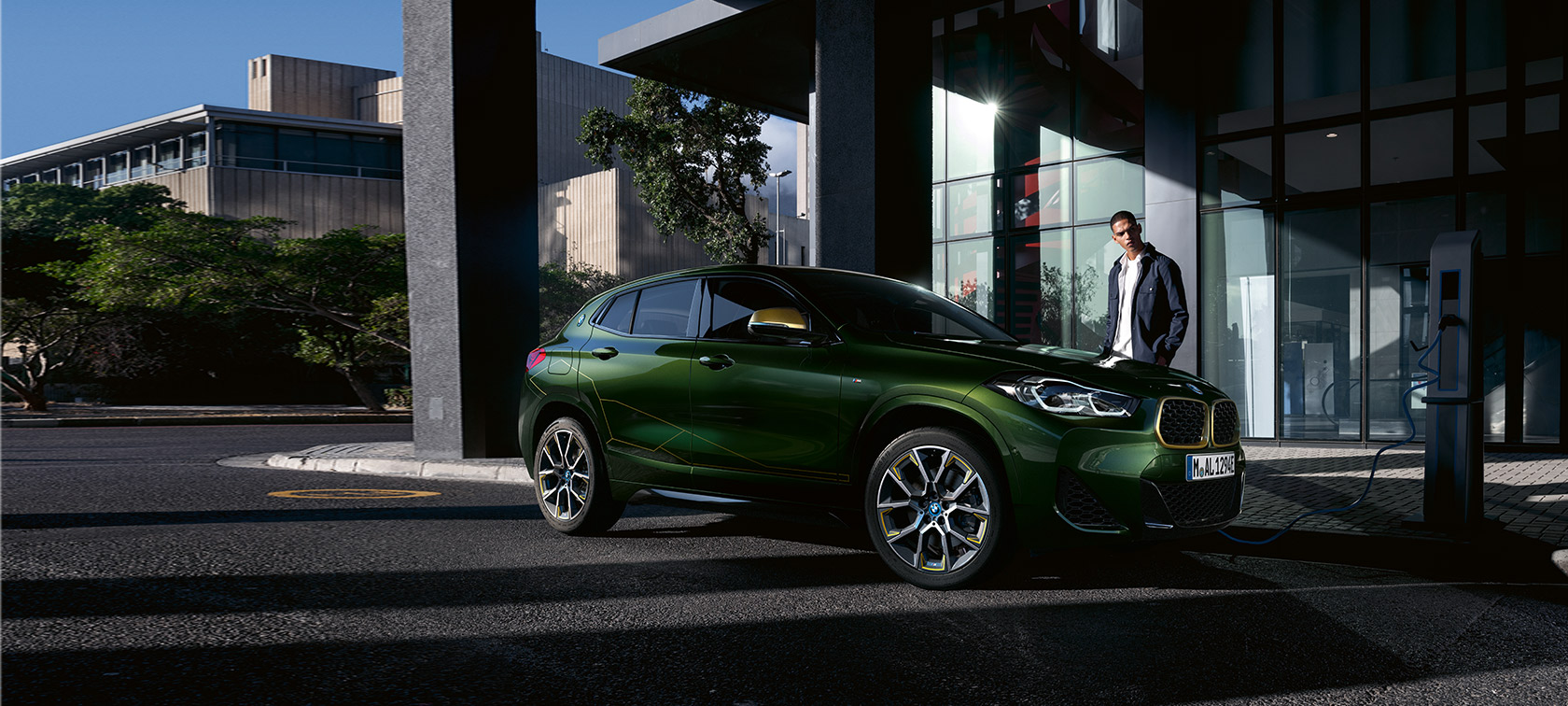

BMW X2 F39 Sanremo front view Three-quarter side view with model

THE X2

BMW X2: ENGINES & TECHNICAL DATA

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X2.

Read more
THE X2BMW X2: ENGINES & TECHNICAL DATA

BMW X2: TECHNICAL DATA.

Weight

Unladen weight EU in kg 1,485-1,475 [1,505-1,495]
Max. permissible weight in kg 1,985 [2,005]
Permitted load in kg 575-585 [575-585]
Permitted axle load front/rear in kg 1,000/1,020 [1,020/1,020]
Luggage capacity min. (seats up or roof down) in l 470 [470]
Luggage capacity max. (seats down or roof up) in l 1,355 [1,355]
Trailer load (unbraked) in kg 735-740 [745-750]
Trailer load 8% (braked) in kg 1,400-1,700 [1,400-1,700]
Trailer load 12% (braked) in kg 1,400-1,700 [1,400-1,700]

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 100-103 (136-140)/4,500-6,500
Engine torque (Nm) at 1/min 220/1,480-4,200
Compression ratio : 1 11.0

Performance

Top speed in km/h 205 [205]
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 9.6 [9.6]

Fuel consumption

Urban in l/100 km 7.3 [7.6]
Extra-urban in l/100 km 5.4 [5.5]
Combined in l/100 km 6.1 [6.3]
CO2 combined emissions in g/km 139 [143]
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,545-1,535
Max. permissible weight in kg 2,055
Permitted load in kg 585-595
Permitted axle load front/rear in kg 1,055/1,030
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 131-141 (178-192)/5,000-6,000
Engine torque (Nm) at 1/min 280/1,350-4,600
Compression ratio : 1 11.0

Performance

Top speed in km/h 227
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 7.7

Fuel consumption

Urban in l/100 km 7.6-7.4
Extra-urban in l/100 km 5.5-5.3
Combined in l/100 km 6.3-6.0
CO2 combined emissions in g/km 143-138
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,640-1,625
Max. permissible weight in kg 2,145
Permitted load in kg 580-595
Permitted axle load front/rear in kg 1,085-1,090/1,090
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 131-141 (178-192)/5,000-6,000
Engine torque (Nm) at 1/min 280/1,350-4,600
Compression ratio : 1 11.0

Performance

Top speed in km/h 224
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 7.4

Fuel consumption

Urban in l/100 km 8.6
Extra-urban in l/100 km 6.3
Combined in l/100 km 7.1
CO2 combined emissions in g/km 163
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 61

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,690-1,685
Max. permissible weight in kg 2.19
Permitted load in kg 575-580
Permitted axle load front/rear in kg 1,120/1,095
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg -
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 225 (306)/5,000-6,250
Engine torque (Nm) at 1/min 450/1,750-4,500
Compression ratio : 1 9.5

Performance

Top speed in km/h 250
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 4.9

Fuel consumption

Urban in l/100 km 9.2-8.7
Extra-urban in l/100 km 6.3
Combined in l/100 km 7.5-7.2
CO2 combined emissions in g/km 171-164
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 61

Wheels

Tyre dimensions front 225/45 R19 96 W XL
Tyre dimensions rear 225/45 R19 96 W XL
Wheel dimensions and material front 8 J x 19 inches, light-alloy
Wheel dimensions and material rear 8 J x 19 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,550 [1,570]
Max. permissible weight in kg 2,015 [2,030]
Permitted load in kg 540 [535]
Permitted axle load front/rear in kg 1,035/1,055 [1,055/1,055]
Luggage capacity min. (seats up or roof down) in l 470 [470]
Luggage capacity max. (seats down or roof up) in l 1,355 [1,355]
Trailer load (unbraked) in kg 750 [750]
Trailer load 8% (braked) in kg 1,700 [1,700]
Trailer load 12% (braked) in kg 1,700 [1,700]

Engine

Cylinders/valves 3/4
Capacity in ccm 1496
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 85 (116)/4,000
Engine torque (Nm) at 1/min 270/1,750-2,250
Compression ratio : 1 16.5

Performance

Top speed in km/h 192 [192]
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 11.5 [11.5]

Fuel consumption

Urban in l/100 km 5.2 [5.2]
Extra-urban in l/100 km 4.4 [4.5]
Combined in l/100 km 4.7 [4.8]
CO2 combined emissions in g/km 124 [125]
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC)
Growth capacity of lithium–ion battery in kWh
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
Electric engine Electric engine
Electric engine power kW (PS) at 1/min
Electric Engine torque (Nm) at 1/min
Combined system power Combined system power
Combined power kW (PS)
Combined torque Nm

Weight

Unladen weight EU in kg 1,585 [1,615]
Max. permissible weight in kg 2,080 [2,115]
Permitted load in kg 570 [575]
Permitted axle load front/rear in kg 1,060/1,050 [1,100/1,050]
Luggage capacity min. (seats up or roof down) in l 470 [470]
Luggage capacity max. (seats down or roof up) in l 1,355 [1,355]
Trailer load (unbraked) in kg 750 [750]
Trailer load 8% (braked) in kg 1,800 [1,800]
Trailer load 12% (braked) in kg 1,800 [1,800]

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 100-110 (136-150)/4,000
Engine torque (Nm) at 1/min 350/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 207 [207]
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 9.3 [9.3]

Fuel consumption

Urban in l/100 km 5.6 [5.6]
Extra-urban in l/100 km 4.5 [4.5]
Combined in l/100 km 4.9 [4.9]
CO2 combined emissions in g/km 129 [129]
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,680
Max. permissible weight in kg 2,180
Permitted load in kg 585
Permitted axle load front/rear in kg 1,115/1,100
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1.355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1.8
Trailer load 12% (braked) in kg 1.8

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 100-110 (136-150)/4,000
Engine torque (Nm) at 1/min 350/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 206
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 9.4

Fuel consumption

Urban in l/100 km 5.7
Extra-urban in l/100 km 4.9
Combined in l/100 km 5.2
CO2 combined emissions in g/km 137
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,620
Max. permissible weight in kg 2,125
Permitted load in kg 580
Permitted axle load front/rear in kg 1,100/1,060
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1.355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1.8
Trailer load 12% (braked) in kg 1.8

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 224
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 7.9

Fuel consumption

Urban in l/100 km 5.4
Extra-urban in l/100 km 4.6
Combined in l/100 km 4.9
CO2 combined emissions in g/km 128
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,680
Max. permissible weight in kg 2,190
Permitted load in kg 585
Permitted axle load front/rear in kg 1,120/1,100
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 120-140 (163-190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 221
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 7.7

Fuel consumption

Urban in l/100 km 5.7
Extra-urban in l/100 km 4.9
Combined in l/100 km 5.2
CO2 combined emissions in g/km 137
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,695
Max. permissible weight in kg 2,170
Permitted load in kg 550
Permitted axle load front/rear in kg 1,140/1,080
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 170 (231)/4,400
Engine torque (Nm) at 1/min 450/1,500-3,000
Compression ratio : 1 16.5

Performance

Top speed in km/h 237
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 6.6

Fuel consumption

Urban in l/100 km 5.9
Extra-urban in l/100 km 5.1
Combined in l/100 km 5.4
CO2 combined emissions in g/km 141
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy
Range and charging Range and charging
Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -
Electric engine Electric engine
Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -
Combined system power Combined system power
Combined power kW (PS) -
Combined torque Nm -

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW X2 xDrive20i:
Fuel consumption in l/100 km (combined): 7.6–6.9
CO2 emissions in g/km (combined): 174–156

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers

Read more

FUEL CONSUMPTION AND CO2 EMISSIONS.

  • BMW X2 xDrive20i:
    Fuel consumption in l/100 km (combined): 7.1
    CO2 emissions in g/km (combined): 163

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

    The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

    [1] Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

    [2] For plug-in hybrid: Electric drive depending on battery charging level.

    [3] For plug-in hybrid: At temperatures below freezing, the fully electric drive system is only available after a few kilometres of driving, once the battery has heated to operational temperature.

    [4] Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195.

    For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

    Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/.

    [5] For plug-in hybrid: Weighted, combined (EC AC Charge Weighted)

    [6] Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

    [7] The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

    [8] The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

    [9] Composed of combustion engine drive (specified nominal value) and electric drive (up to specified nominal value). Electric drive depending on battery charging level.

    [10] Provisional figures; any missing figures were unavailable at the time of publication.
